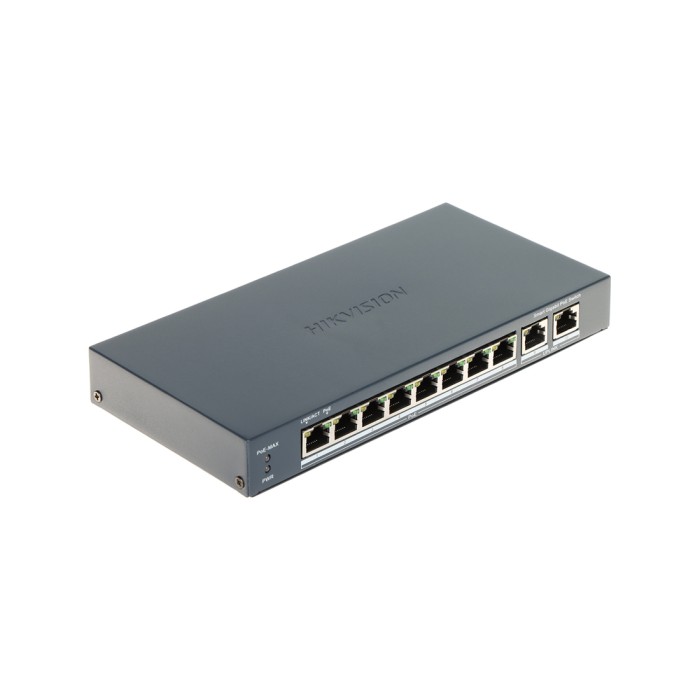

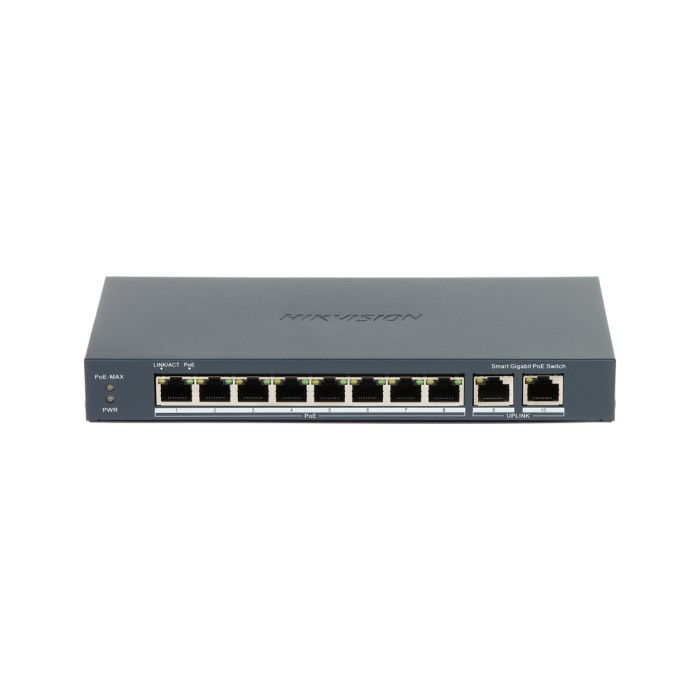

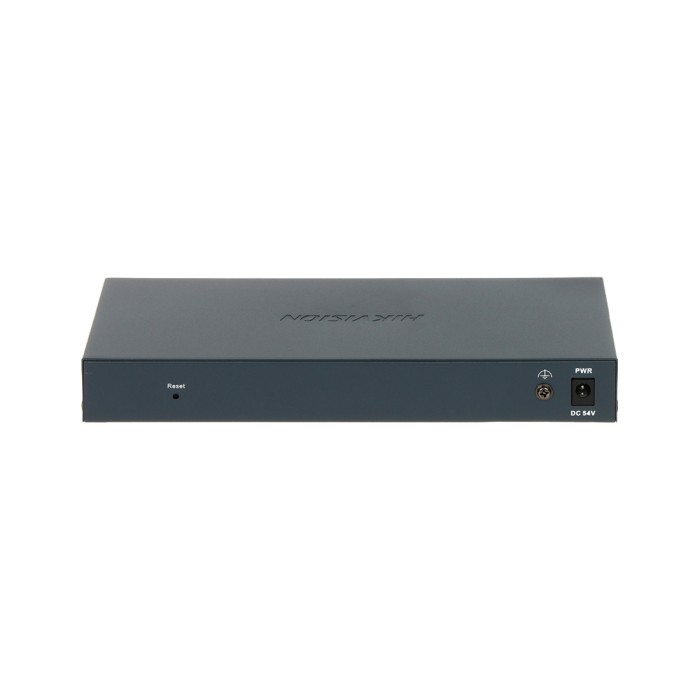

Коммутатор Hikvision DS-3E1510P-EI (V2)

Описание Коммутатор Hikvision DS-3E1510P-EI (V2)

• 8 × Gigabit PoE port,2 × Gigabit RJ45 port
• Total PoE Power Budget 110W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6KV Surge Protection

• General
• Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Installation ModeDesk-Mounted,Wall-Mounted
• Gross Weight1.27 kg (2.8 lb)
• Net Weight0.54 kg (1.19 lb)
• Power Consumption in Idle2.7 W
• ShellMetal material
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity5% to 95% (no condensation)
• Power Supply54VDC, 2.22A
• Max. Power Consumption120 W
• Relative Humidity5% to 95% (no condensation)
• Surge Protection6 KV

• Network Parameters
• Ports8 × Gigabit PoE port,2 × Gigabit RJ45 port
• MAC Address Table4 K
• Switching Capacity20 Gbps
• Packet Forwarding Rate14.88 Mpps
• Internal Cache1.5 Mbits

• PoE Power Supply
• PoE Standard
