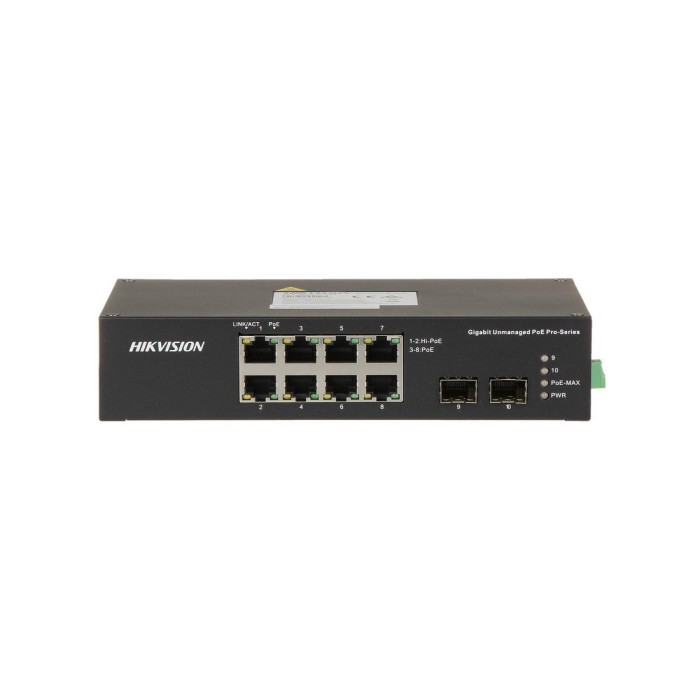

Коммутатор Hikvision DS-3T0310HP/No Power unit

Описание Коммутатор Hikvision DS-3T0310HP/No Power unit

• General
• ShellMetal material, fan-free design
• Net Weight0.565 kg (1.25 lb)
• Gross Weight1.24 kg (2.73 lb)
• Dimensions (W × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
• Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48-57VDC, 2.5A
• Max. Power Consumption120 W
• Power Consumption in Idle10 W
• Installation ModeDesk-Mounted,Rail
• Surge Protection6 KV

• Network Parameters
• Ports8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
• MAC Address Table4 K
• Switching Capacity5.6 Gbps
• Internal Cache1.5 Mbits
• Packet Forwarding Rate4.17 Mpps

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power PinPorts 3-6： End-span: 1/2(-), 3/6(+)； Ports 1-2，Ports 7-8： 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortHi-PoE: Ports 1 to 2,PoE: Ports 3 to 8
• Max. Port Power
